Micro-channels

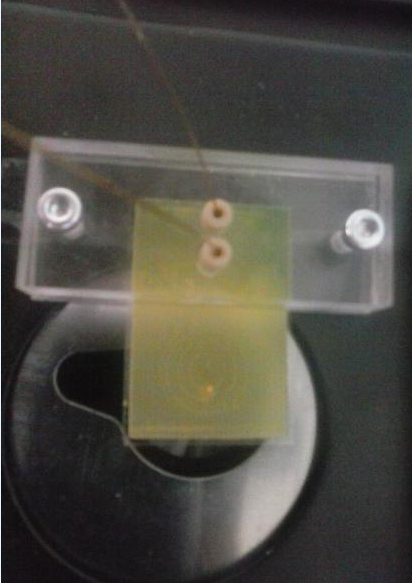

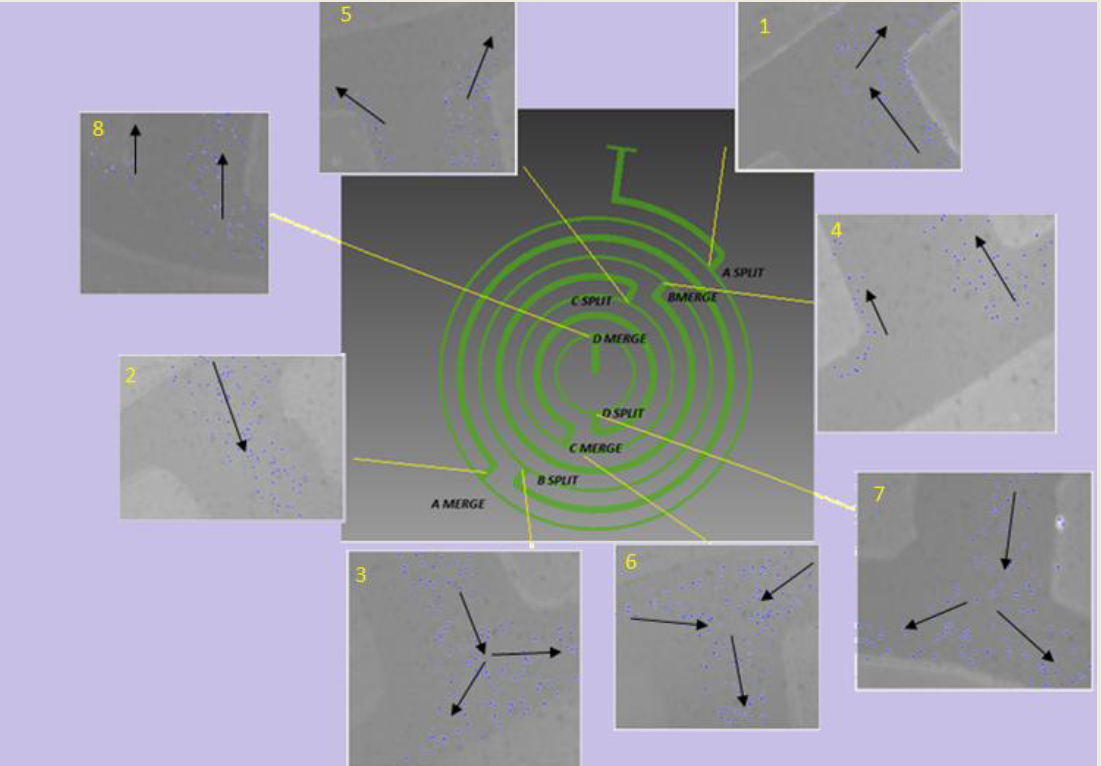

Merge and split micromixer
with the two tubes
at its entrance
with the two tubes
at its entrance
Merge and split micromixer (60 micron deep)

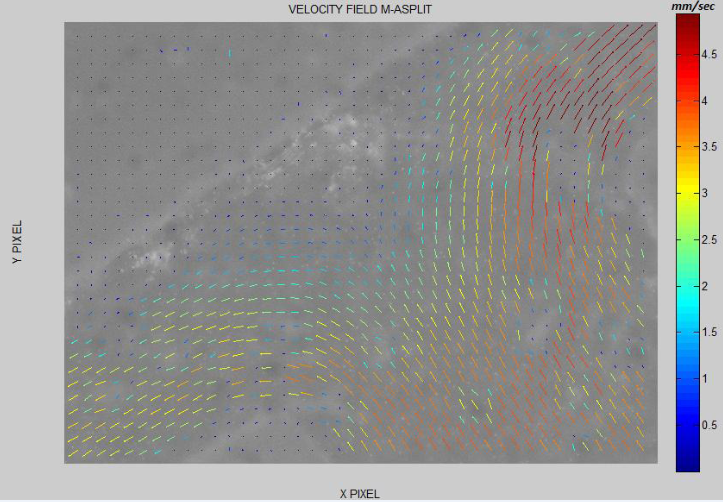

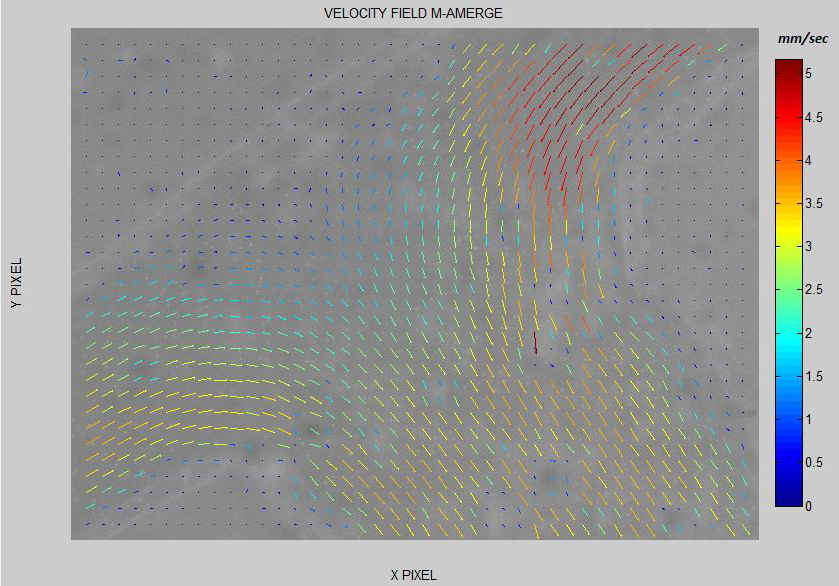

Measured velocities at a merge area

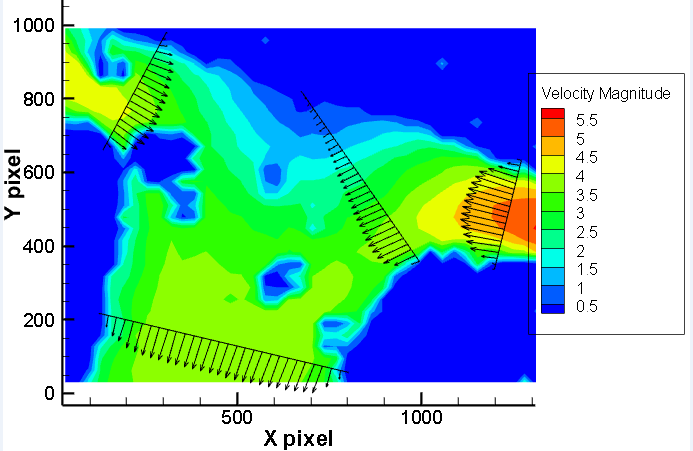

Measured velocity profiles at a merge area
Measured velocities at a split area

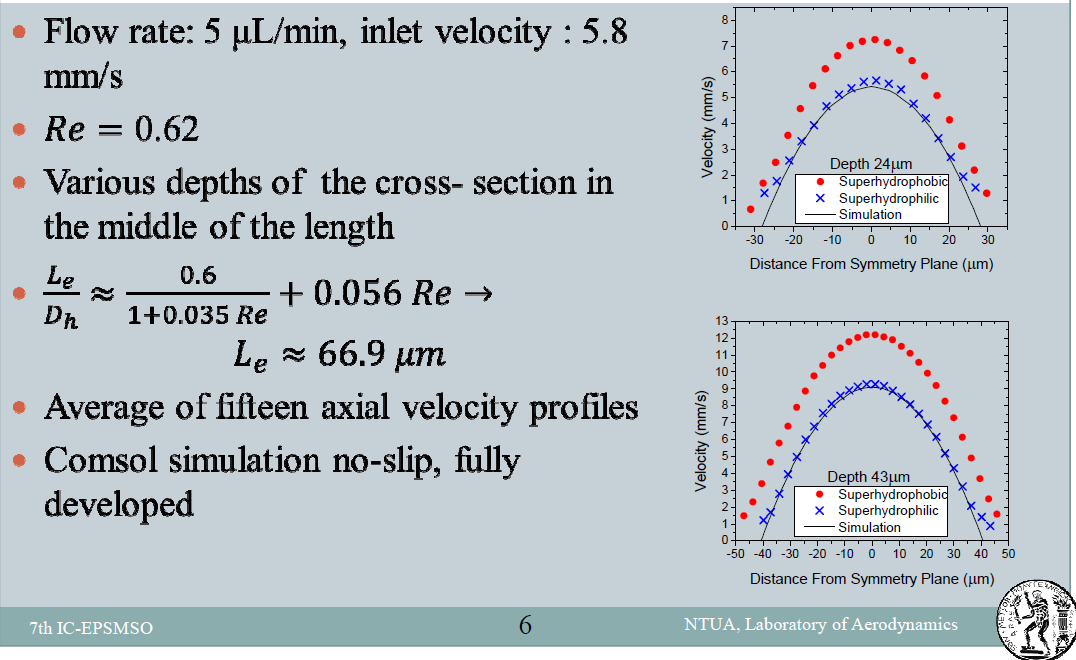

Measured velocity profiles in a superhydrophobic and super hydrophilic microchannel 120 micron deep

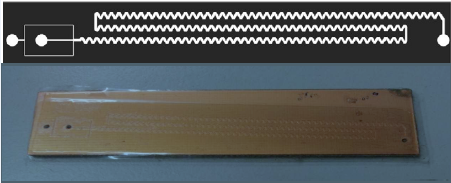

zig-zag micromixer
basic dimensions

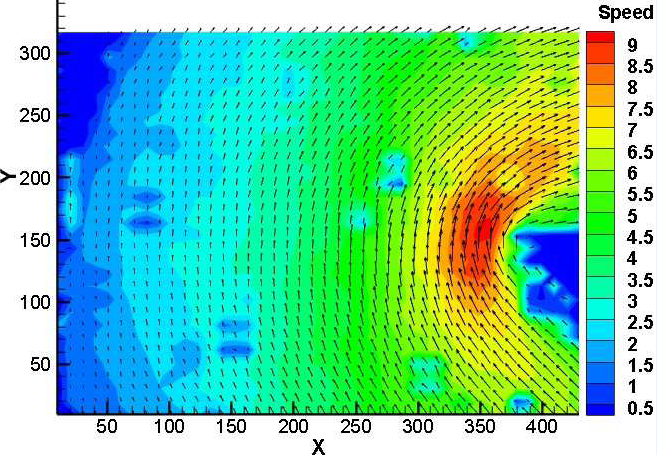

measured velocities at a turn (Zig-zag micromixer)

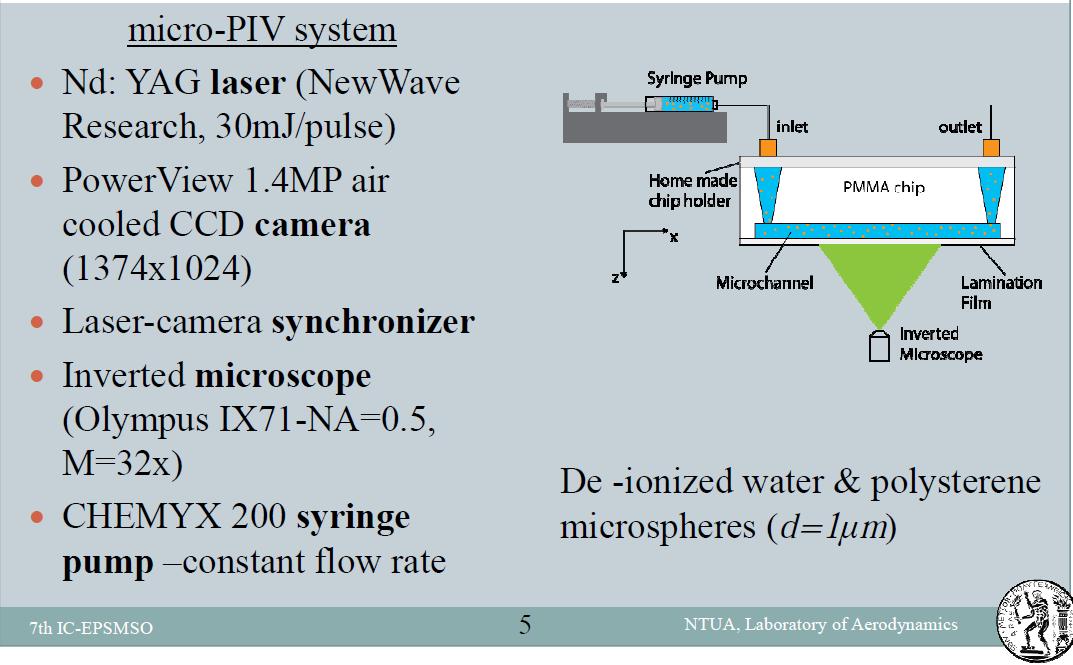

Velocity measurements (use of micro PIV) in :
a) microchannels with superhydrophobic and superhydrophylic walls,
b) micromixers (merge and split type/zig- zag type)
a) microchannels with superhydrophobic and superhydrophylic walls,
b) micromixers (merge and split type/zig- zag type)
