Flow control

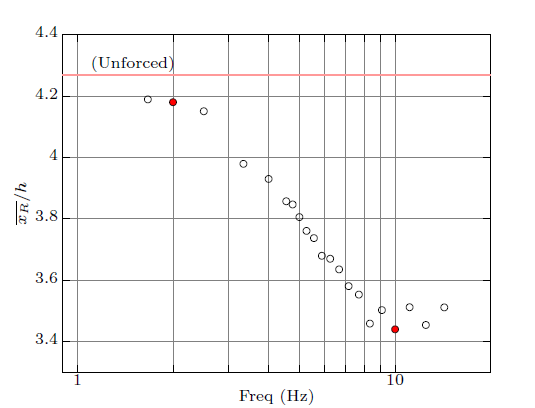

Recirculation length versus frequency of pulsating jets

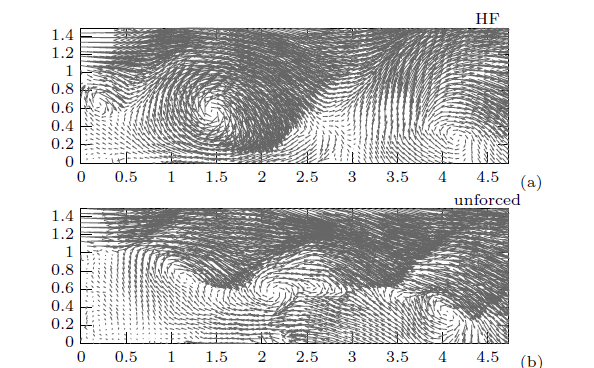

Snapshots under forced (upper) and unforced (lower) conditions

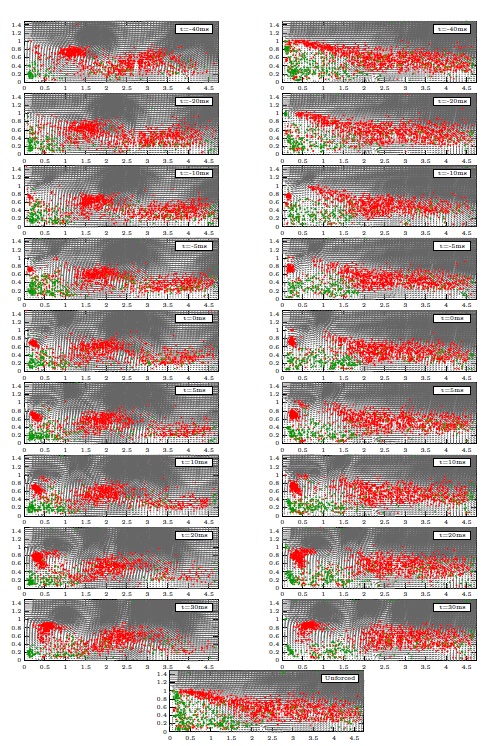

Vortex centers (red: clockwise /green: anticlockwise).
Optimum frequency (left), non optimum frequency (right), unforced (bottom)
Optimum frequency (left), non optimum frequency (right), unforced (bottom)

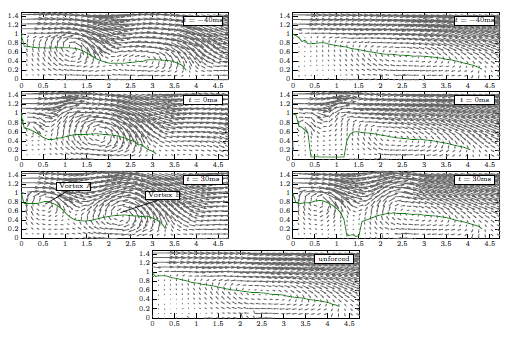

Averaged velocity field. Forced at f=10Hz (left), forced at f=2Hz and unforced (bottom)
Flow control in a backward facing step
Pulsating jets of variable frequency / use of 2D PIV with two cameras
